    5.85-7.025GHz WR137 10W 100W Waveguide Isolator In Microwave

    Ask Lasest Price
    Brand Name : Sinoscite
    Model Number : SNSD-BG70-14
    Certification : ISO 9001:2015
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Piece per month
    Delivery Time : Less than 4weeks
    • Product Details
    • Company Profile

    5.85-7.025GHz WR137 10W 100W Waveguide Isolator In Microwave

    5.85-7.025GHz WR137 10W 100W Isolator In Microwave
    Quick Details
    1Product TypeIsolator
    2ModelSNSD-BG70-14
    3Passband Frequency5.85-7.025GHz
    4Insertion Loss≤0.5dB
    5VSWR≤1.25
    6Isolation≥18dB
    7InterfaceWR137
    8Pass Power30W/100W
    9Reflect Power3W/10W

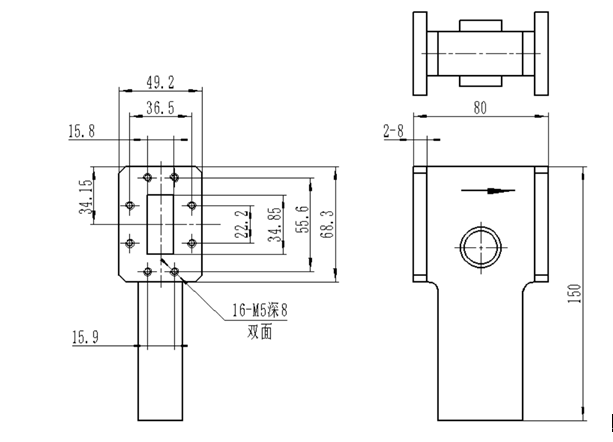

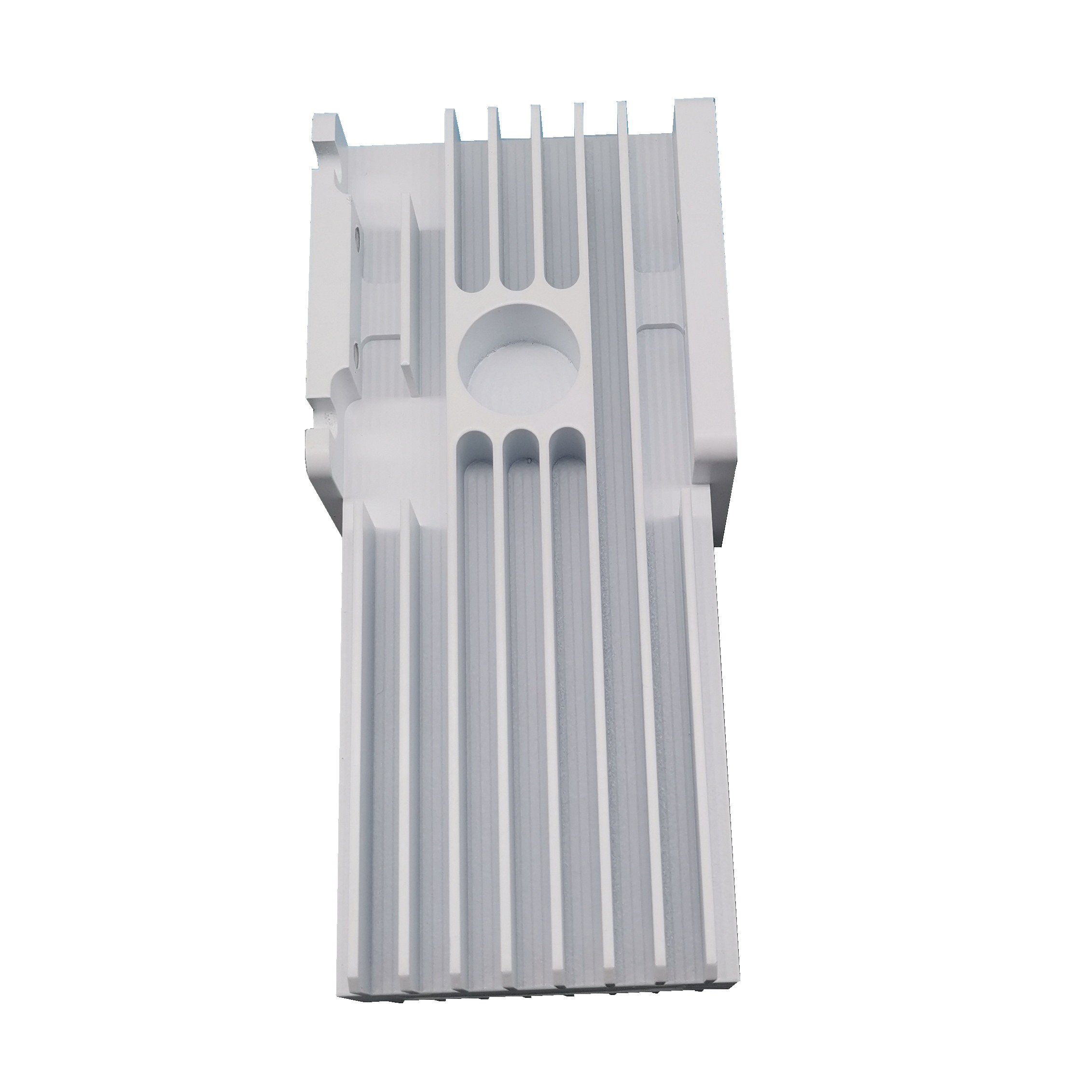

    5.85-7.025GHz WR137 10W 100W Waveguide Isolator In Microwave5.85-7.025GHz WR137 10W 100W Waveguide Isolator In Microwave5.85-7.025GHz WR137 10W 100W Waveguide Isolator In Microwave

    Features & Benefits

    • Ideal for up and down-converters
    • Low insertion loss improves link budgets
    • Low VSWR provides higher system efficiency
    • High isolation improves systems fidelity
    • Industrial temperature range

    QUICK SELECTION TABLE, HIGH POWER
    POWER
    (W) ISW/CSW    		W/G
    SIZE    		FREQUENCY
    RANGE
    (GHz)    		ISOLATION
    (dB)
    Typ.    		VSWR
    Max.    		INSERTION
    LOSS
    (dB) Max.    		OPERATING
    TEMP.
    (Deg. C)
    10/200WR1127.1-7.8231.15:10.2-30 to +70
    10/200WR1127.8-8.5231.15:10.2-30 to +70
    5/200WR908.5-9.6221.20:10.2-30 to +70
    5/200WR909.0-10.0221.18:10.2-30 to +70
    5/200WR9010.0-11.0221.18:10.2-30 to +70
    5/200WR9010.7-11.7221.18:10.2-30 to +70
    3/100WR7510.7-11.7211.20:10.25-30 to +70
    3/100WR7511.5-12.6211.20:10.25-30 to +70
    3/100WR7512.75-13.5211.20:10.25-30 to +70
    3/500WR7512.75-14.5231.15:10.20-40 to +90
    3/100WR7513.0-14.5211.20:10.25-30 to +70
    3/100WR6213.5-14.5211.20:10.30-30 to +70
    3/100WR6214.0-15.3211.20:10.30-30 to +70
    3/100WR6214.0-16.0201.25:10.30-30 to +70
    3/100WR6216.0-17.0211.20:10.30-30 to +70
    3/100WR6217.0-18.0211.20:10.30-30 to +70
