Dual Cavity 50 Ohm RF LC Filter Low VSWR

Ask Lasest Price
Brand Name :	Sinoscite
Model Number :	MF-NL1318-NF/SMAF
Certification :	ISO 9001:2015
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	2000 Piece per month
Delivery Time :	Less than 4weeks

Add to Cart

Product Details
Company Profile

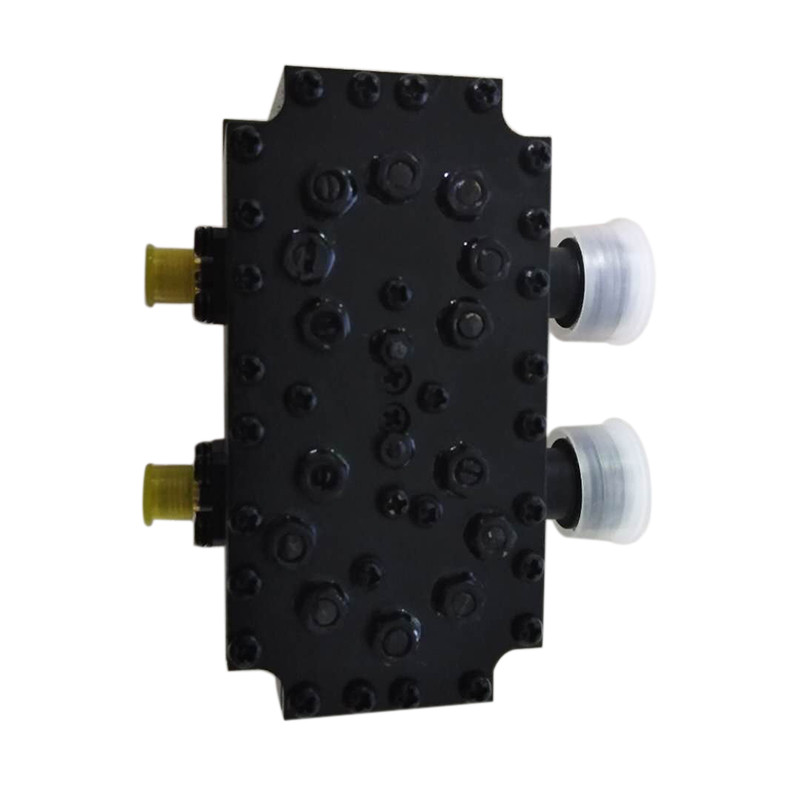

Dual Cavity 50 Ohm RF LC Filter Low VSWR

RF LC Filter dual Cavity Filter Low VSWR Low insertion loss Manufacturer

The LC filter is also called a passive filter and is a traditional harmonic compensation device. The reason why the LC filter is called a passive filter, as the name implies, is that the device does not require additional power supply. The LC filter is generally made up of a proper combination of filter capacitors, reactors and resistors, and is connected in parallel with the harmonic source. In addition to filtering, it also takes into account the needs of reactive power compensation.

LC filter is a filter circuit that uses a combination of inductors, capacitors and resistors to filter out a certain one or multiple harmonics. The most common and easy-to-use passive filter structure is to connect inductors and capacitors in series, which can affect the main Harmonics (3, 5, 7) form a low impedance bypass; single-tuned filters, double-tuned filters, and high-pass filters are all passive filters.

Technical & Mechanical Specifications

Frequency range(MHz)	1300-1400MHz 1750-1850MHz
Power	50W
VSWR	1.3
Impedance	50 ohm
Insertion loss(dB)	≤0.3dB
Ripple	0.2dB
Out of band rejection	80dB
Connector Type	N female to SMA female

Our Products Features:

♦ Wide Frequency Band

♦ Low Insertion Loss

♦ Low VSWR

♦ High Port to Port Isolation

◆High Quality

◆Durable&Long Service Life

◆A variety of products can be chosen

◆All the specifications can be changed as customer's requirment

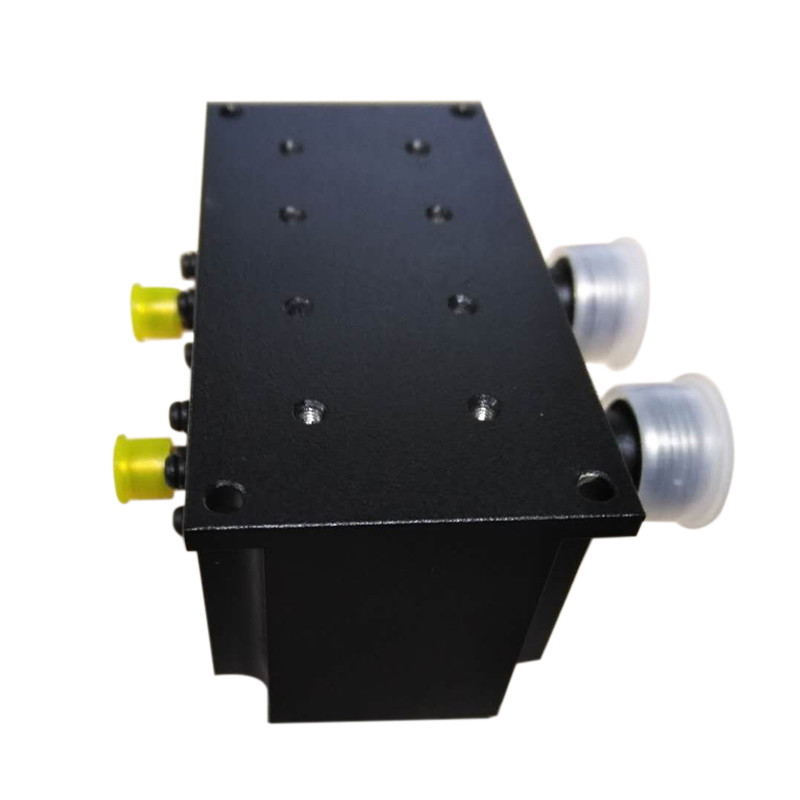

Dual Cavity 50 Ohm RF LC Filter Low VSWR

Packaging & Shipping

Packing:Standard exporting carton.

each product individually wrapped, high density foam protection professional packing protect product safely.

Airport: Shanghai airport, Shenzhen airport and Chengdu Airport.

Dual Cavity 50 Ohm RF LC Filter Low VSWR
