Telecommunication Waveguide Horn Antenna Corrugated High Gain Antenna

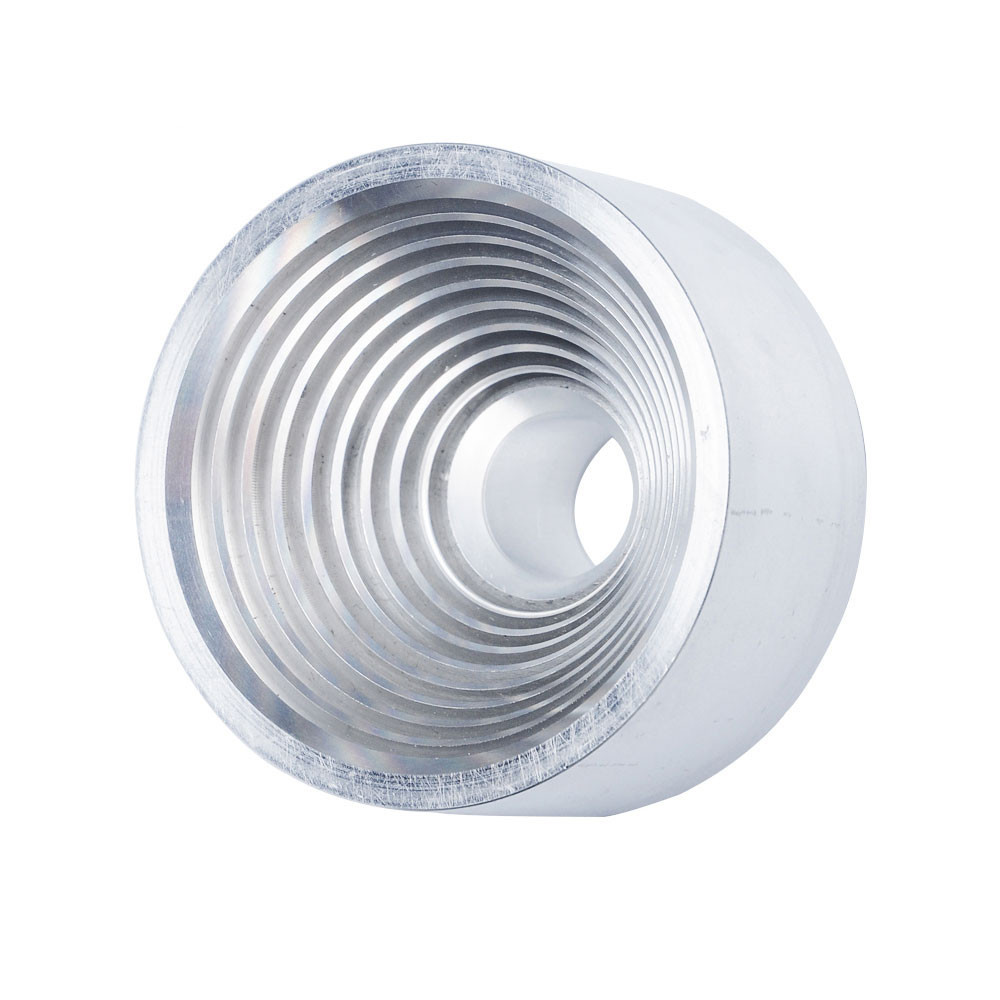

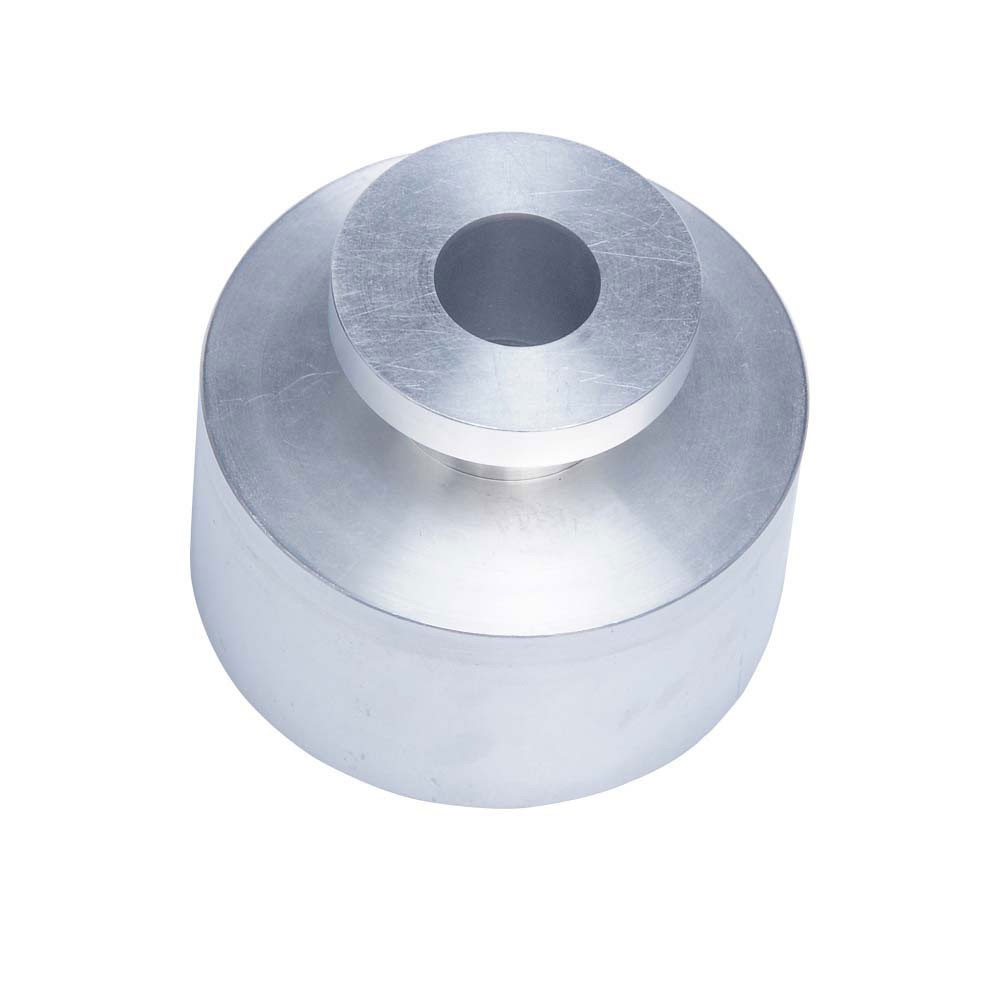

The corrugated conical horn antenna is a kind of horn antenna, and is an antenna formed by embedding the inner wall of the optical wall horn antenna into the corrugated groove. The processing of the corrugated conical horn is difficult and costly, but its lobes are well-formed, the cross-polarization level and the side-lobe level are very low, and the frequency band is very wide.

Corrugated conical horn are best suited for use as illuminators for a variety of high-performance antennas of the modern era, and have become the dominant type of illuminators in contemporary high-performance satellite communications, satellite television and other microwave antennas.

Features

a, the radiation pattern is symmetrical (axisymmetric).

b, low side lobes, the typical value of the entire waveguide frequency can reach -25dB, the narrow band can reach the typical value of -40dB.

c, low cross polarization, low return loss.

d, linear polarization, double-line polarization or circular polarization.

e, square waveguide or circular waveguide output.

f, can be customized according to requirements.

g, can choose different installation methods.

h, select the corresponding waveguide coaxial conversion.

Model & Specification
