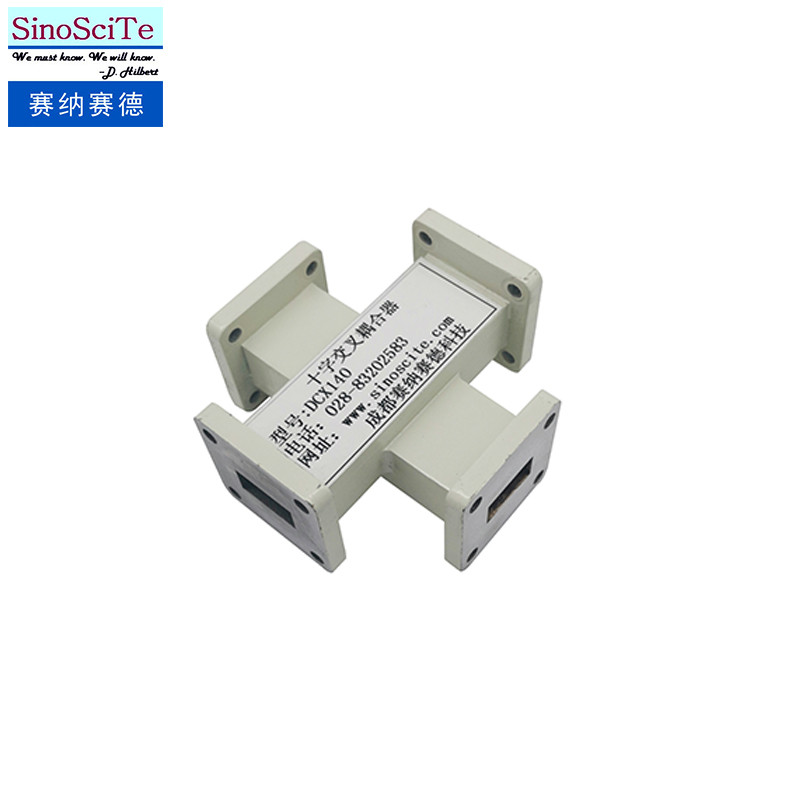

Microwave High Directivity High Capacity Compact Cross Waveguide Coupler

A directional coupler is a universal microwave / millimeter wave component that can be used for signal isolation, separation, and mixing, such as power monitoring, source output power stabilization, signal source isolation, and transmission and reflection sweep testing. The transmitted power is converted to the secondary line through various channels and interferes with each other and is transmitted in only one direction in the secondary line. Among a wide range of modern electronic systems.

We provide a range of Hot Sale new creative Waveguide cross directional coupler,and it can be customized according to your requirements.

1.Operation frequency:8.2~12.5GHz;
2.V.S.W.R:<1.1;
3.Degree of coupling:-20±1.2dB;
4.Directivity:>25dB
5.Insertion loss:<0.14dB
6.Dimensions(mm):63*63*53
