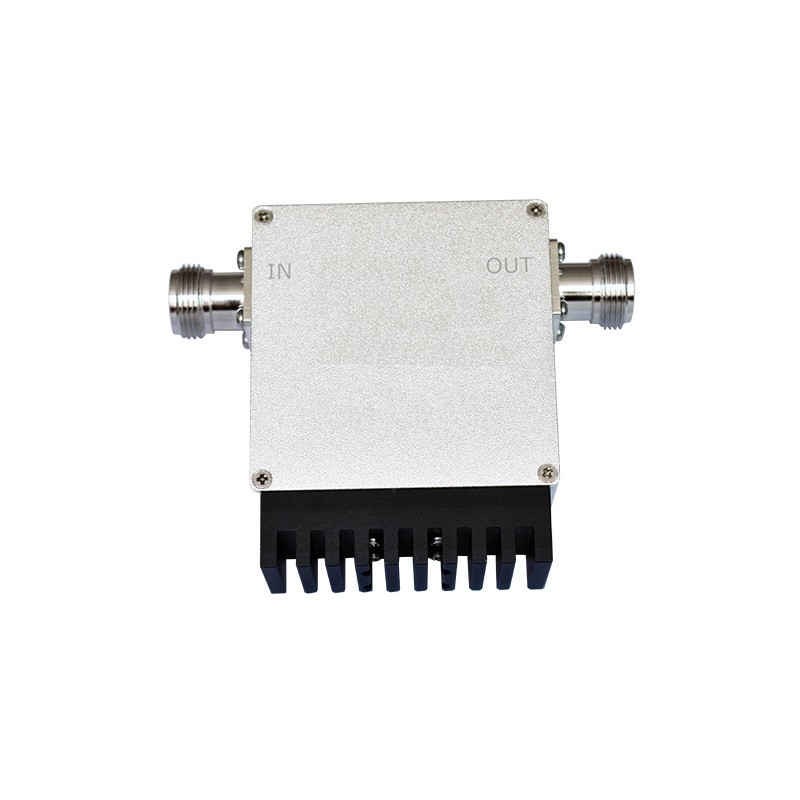

    High Isolation High Power Uhf Isolator , Sma Rf Waveguide Coaxial Isolator

    Ask Lasest Price
    Brand Name : Sinoscite
    Model Number : SNSD34
    Certification : ISO 9001:2015
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Piece per month
    Delivery Time : Less than 4weeks
    • Product Details
    • Company Profile

    High Isolation High Power Uhf Isolator , Sma Rf Waveguide Coaxial Isolator

    High Isolation High power UHF Isolator And SMA RF Waveguide Coaxial Isolator


    Quick Details
    Application:5 G
    Freq. Range (MHz):160 ~ 190
    Insertion Loss Max(dB):0.6
    Isolation Min(dB):20
    VSWR Max:1.25
    Forward Power(W):200
    Reverse Power(W):100
    Connector Type:SMA, N
    Dimension:60--75--28
    Warranty:12 Months
    Certification:CE/ROHS/ISO9001
    Product Description
    High Isolation High Power Uhf Isolator , Sma Rf Waveguide Coaxial Isolator
    Design Features
    ◆ Can be dual junction even three for high isolation.
    ◆ Custom design available upon request.
    ◆ Military, space and commercial applications.
    ◆ Guaranteed for one year standard.
    Freq.Range (MHz)
    		45~270
    Forward Power(W)
    200
    BW Max.
    40%
    Reverse Power(W)
    100
    IL.(dB)
    0.5
    Connector Type
    N, SMA
    Isolation(dB)
    25
    Temp. (°C)
    -30~+70
    VSWR
    1.15
    Dimension LxWxH(mm)
    60×75×28
