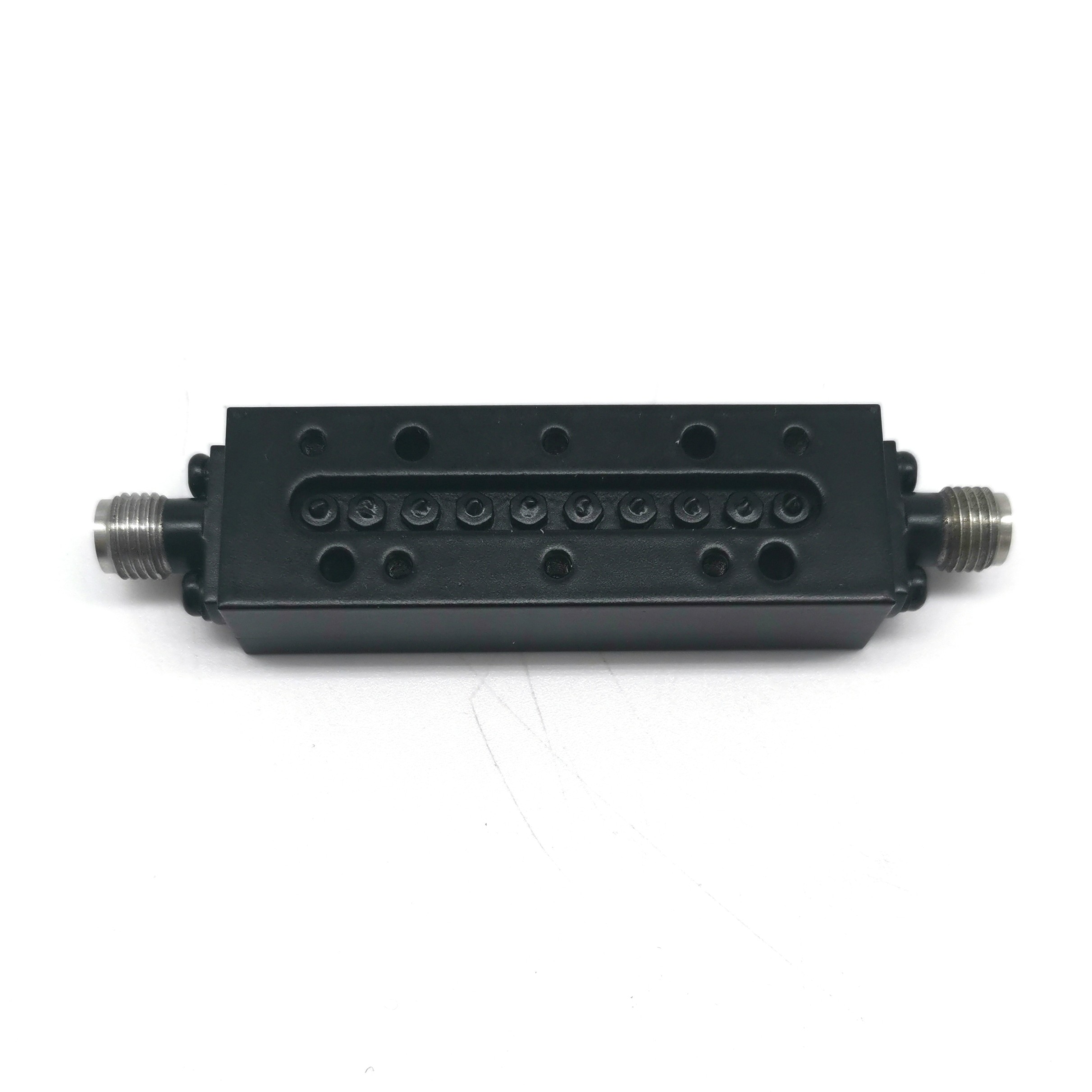

High Rejection RF Microwave Filters Used To Block Unwanted Signals

High Rejection RF Microwave Bandpass Filters Used To Block Unwanted Signals

Product Details

Part Number :SNSD-204-0607
Manufacturer :Sinoscite
Description :RF Microwave Bandpass Filters Used To Block Unwanted Signals In The Wireless System

General Parameters

Type :Cavity Filter
Application Industry :Commercial, Industrial, Medical, Wireless Communication
Application :ISM Band, WiFi
Frequency :26.5-40.5GHz
Insertion Loss :1.5 dB
Rejection :55(35dB)
Power :5 W
VSWR :1.5
Impedance :50 Ohms
Package Type :Module with Connectors
Connector :SMA
Gender :Female

Operating frequency (GHz)	Insertion loss (dB)	VSWR	Suppression point f1(GHz)	Suppression point f2(GHz)	Connector	Size (mm)
0.585-0.615	0.5	2	0.45(60dB)	0.75(60dB)	SMA-K	1135020
0.71-0.73	2.5	1.3	0.695(45dB)	0.735(50dB)	SMA-K	1086535
0.8-1.6	5	2.2	0.75(40dB)	1.65(50dB)	SMA-K	1045130
1.2-1.4	0.3	1.35	0.8(50dB)	2-6(50dB)	N-K	886440
1.95-2.05	2	1.5	1.9(40dB)	2.1(40dB)	SMA-K	418423
2.2-2.8	1	2	2(30dB)	3(30dB)	SMA-K	903520
2.4-3.6	1	1.5	2(30dB)	4(30dB)	SMA-K	482410
4-6	1	1.5	3.4(40dB)	7-15(40dB)	SMA-K	45229
8.15-8.25	3	1.5	8.1(40dB)	8.3(40dB)	SMA-K	403216
8-12	1	1.8	7(45dB)	13-20(30dB)	SMA-K	1402020
12.7-13.3	1.5	1.5	12.3(40dB)	13.7(40dB)	SMA-K	681711
12-18	1	1.2	8.2(50dB)	20.8(50dB)	SMA-K	681711
18-26.5	1	1.5	5-12(60dB)	36-40(60dB)	2.92-K	391813
27.5-31	1.5	2	26.8(40dB)	31.9(60dB)	2.92-K	781612
33-40	1	1.5	30(85dB)	43(85dB)	2.92-K	491411
43.5-45.5	3	2	42.8(50dB)	46.2(50dB)	2.4-K	501313
58-62	1	1.5	55(35dB)	65(35dB)	1.85-K	401010

A bandpass filter is an electronic device that allows signals between two specific frequencies to pass, but that discriminates against signals at other frequencies.
