RF Cavity Filter Pass Band Filter Passive Components
1 Information about Rf Cavity Filter
Cavity Filters are widely used in rf, if and baseband parts of
receivers.Although for the development of this digital technology,
the digital filter can replace the analog filter of baseband or
even if the intermediate frequency, the rf filter is still
irreplaceable.Therefore, the filter is one of the essential key
components in the rf system.
2 RF filter Quick Details:
| Frequency Range | 26.5-40.5GHz |
| Insertion loss | ≤1.25dB |
| Actual frequency band | 1190~1810MHz |
| In-band fluctuation | ≤0.5 |
| Input/output VSWR | ≤1.5 |
| Working temperature | -45℃~+75℃ |
| Storage temperature | -55℃~+85℃ |
3 Parameter list
| Model | Working Freq.(GHz) | Insertion Loss(dB) | VSWR | f1 Inhibition point(GHz) | f2 Inhibition point(GHz) | Connector | Size(mm) |
| BPF585-615MS-0476 | 0.585-0.615 | 0.5 | 2 | 0.45(60dB) | 0.75(60dB) | SMA-K | 113*50*20 |
| BPF0.71-0.73GS-0674 | 0.71-0.73 | 2.5 | 1.3 | 0.695(45dB) | 0.735(50dB) | SMA-K | 108*65*35 |
| BPF0.8-1.6GS-0644 | 0.8-1.6 | 5 | 2.2 | 0.75(40dB) | 1.65(50dB) | SMA-K | 104*51*30 |
| BPF1.2-1.4GN-0906 | 1.2-1.4 | 0.3 | 1.35 | 0.8(50dB) | 2-6(50dB) | N-K | 88*64*40 |
| BPF1.95-2.05GS-0663 | 1.95-2.05 | 2 | 1.5 | 1.9(40dB) | 2.1(40dB) | SMA-K | 41*84*23 |
| BPF2.2-2.8GS-0743 | 2.2-2.8 | 1 | 2 | 2(30dB) | 3(30dB) | SMA-K | 90*35*20 |
| BPF2.4-3.6GS-0586 | 2.4-3.6 | 1 | 1.5 | 2(30dB) | 4(30dB) | SMA-K | 48*24*10 |
| BPF4-6GS-0563 | 4-6 | 1 | 1.5 | 3.4(40dB) | 7-15(40dB) | SMA-K | 45*22*9 |
| BPF8.15-8.25GS-0647 | 8.15-8.25 | 3 | 1.5 | 8.1(40dB) | 8.3(40dB) | SMA-K | 40*32*16 |
| BPF8-12GS-0836 | 8-12 | 1 | 1.8 | 7(45dB) | 13-20(30dB) | SMA-K | 140*20*20 |
| BPF12.7-13.3GS-0493 | 12.7-13.3 | 1.5 | 1.5 | 12.3(40dB) | 13.7(40dB) | SMA-K | 68*17*11 |
| BPF12-18GS-0192 | 12-18 | 1 | 1.2 | 8.2(50dB) | 20.8(50dB) | SMA-K | 68*17*11 |
| BPF18-26.5GK-0990 | 18-26.5 | 1 | 1.5 | 5-12(60dB) | 36-40(60dB) | 2.92-K | 39*18*13 |
| BPF27.5-31GK-0284 | 27.5-31 | 1.5 | 2 | 26.8(40dB) | 31.9(60dB) | 2.92-K | 78*16*12 |
| BPF33-40GK-0544 | 33-40 | 1 | 1.5 | 30(85dB) | 43(85dB) | 2.92-K | 49*14*11 |
| BPF43.5-45.5GU-0337 | 43.5-45.5 | 3 | 2 | 42.8(50dB) | 46.2(50dB) | 2.4-K | 50*13*13 |
| BPF58-62GV-0814 | 58-62 | 1 | 1.5 | 55(35dB) | 65(35dB) | 1.85-K | 40*10*10 |

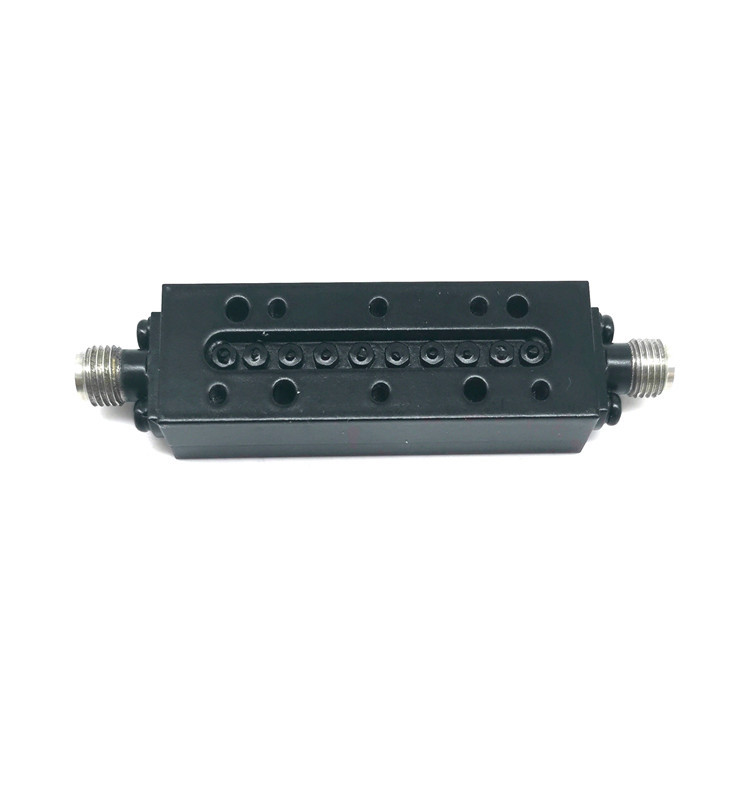

4 Photo
